Wohler VIS 700 PLUS HD Camera Inspection System w/ 1.5" & 1" Camera Head & Trolly

Regular price $15,595.00 USD
Regular price $16,999.00 USD Sale price $15,595.00 USD
Shipping calculated at checkout.

*BEST IN CLASS*

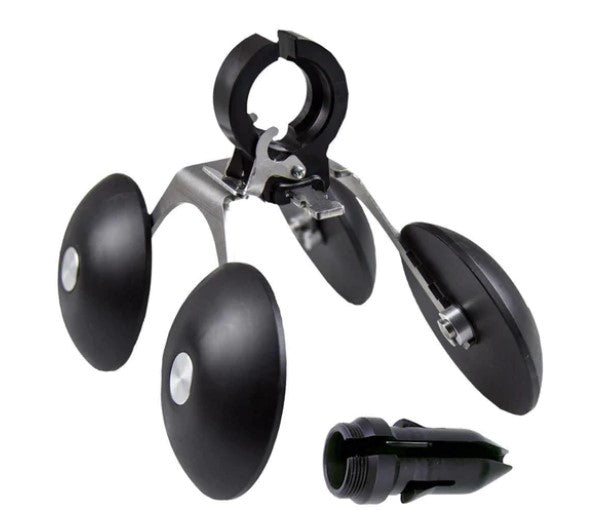

Wohler VIS 700 PLUS HD Camera Inspection System w/ 1.5" & 1" Camera Head- Includes TROLLY

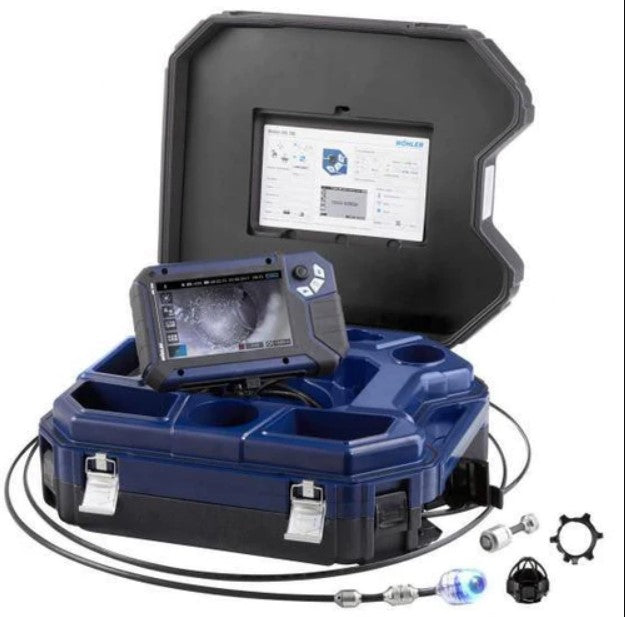

The Wöhler VIS 700 HD digital video inspection system with razor-sharp high-definition images, individual focus control for precise inspection, and now wireless locating. Super portable and operates on AC or DC power (4-hour rechargeable Li-ion battery). The Wohler VIS 700 is the ideal inspection camera for waste water pipes, flue gas, and ventilation lines as well as NDT and plumbing applications.

Fully Digital Camera System
A new digital high-resolution sensor assures amazingly sharp images. With the Wohler VIS 700, professionals are able to plan their maintenance services on the basis of clearly visible facts. The displayed level indication ensures you keep orientation in the pipe. The camera display shows the camera head position and angle for ease of navigation. The home function allows you to realign the camera head straight forward when needed. HD images are displayed for you on the brilliant, touch-screen high-resolution monitor. The Wöhler VIS 700 is designed to transmit live video data to smart devices via Wireless LAN. While conducting an inspection, you have the option to stream live images and videos on a smartphone or tablet. You can also save all footage to an SD card for reviewing at a later time.

Focus Using Joystick and Touchscreen
The focus function via touch screen or joystick makes it possible to precisely control the depth of focus. A simple tip on the joystick ensures a precise, crystal clear image on the screen. Additional settings and extras, such as the touchscreen keyboard, are accessible by tapping the touchscreen monitor.

Advantages
• High Definition of image quality
• 1.5-inch detachable waterproof pan & tilt color camera head (IP 67)

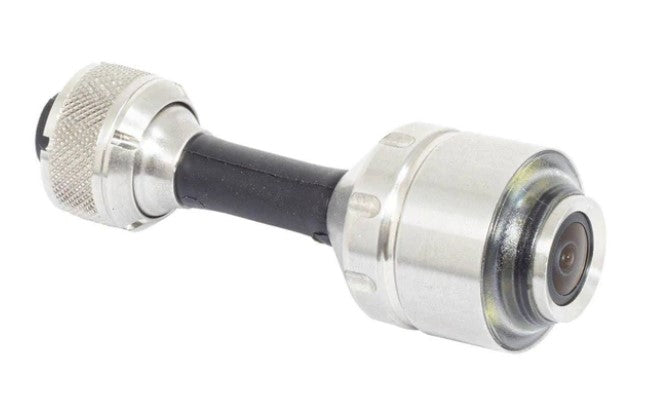

• 1.0-inch detachable waterproof color camera head (IP 68)
• 7" HD color touchscreen with adjustable focus via joystick/touch screen
• Built-in radio transmitter facilitates wireless location detection
• Position and level display for orientation during inspections
• On-screen keyboard for typing comments/descriptions to photos
• Transmission of live images/video via Wireless LAN

Application
• Analyze damage and inspect:
• House connection pipes up to 8"
• NDT applications
• Flue gas systems of 2.5” and larger

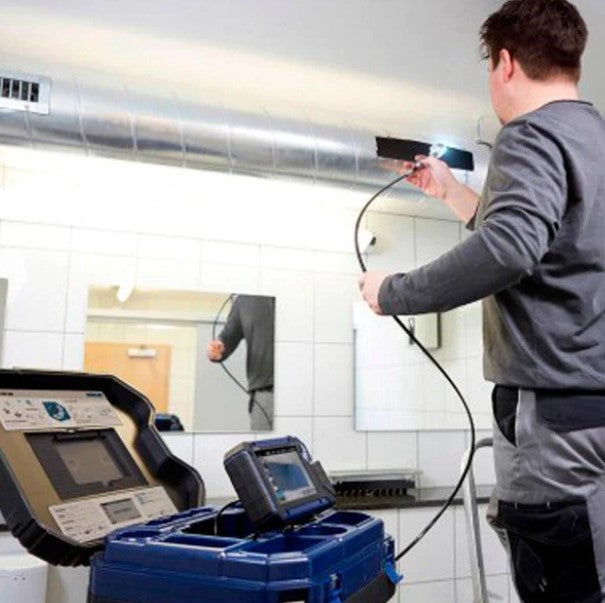

• Ventilation system ductwork
• False ceilings, hollow spaces, shafts
• Industrial machines/plant
• Waste water lines of 2.5" and larger

Functionality
• HD touchscreen – razor-sharp recordings from any perspective
• Adjustable depth of focus

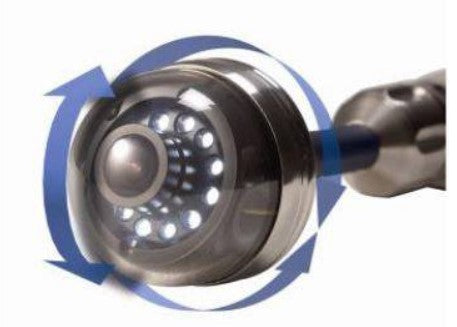

• Optics pan 360° and tilt 180°- even the smallest amount of damage is viewable
• Camera head with integrated variable frequency transmitter
• Electronically determined position and angle of the camera head shown on the display

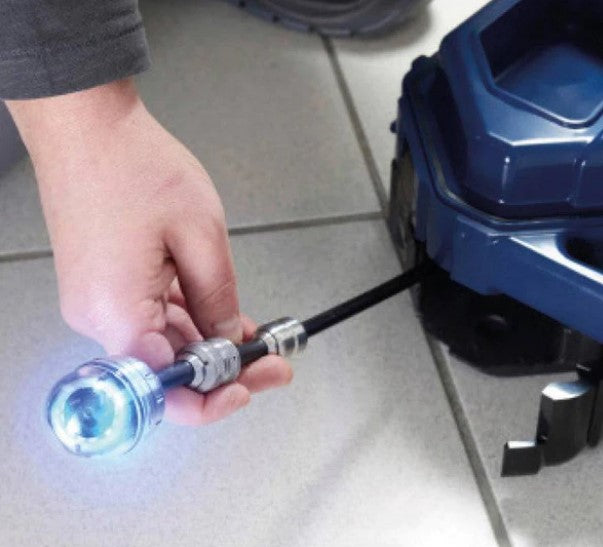

• Brightly illuminating color camera head, 1.5” in diameter and 2.5” in length, easily negotiates tight bends
• Electronic distance counter displays position on the monitor

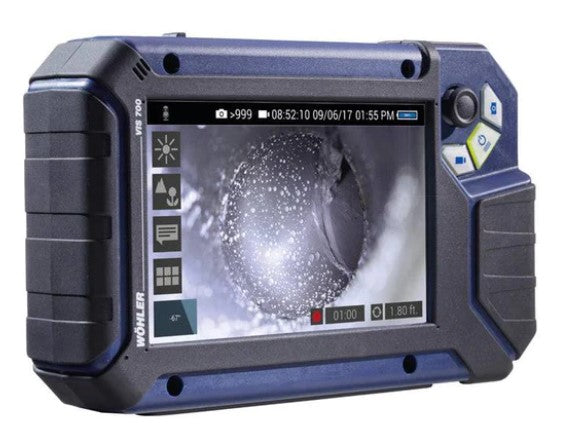

• Bright TFT color monitor for razor-sharp images
• Battery operating time of 4 hours with a rechargeable Li-ion battery
• Fully equipped mobile solution in a rugged twin-wall hard case
• Comments features touch screen keyboard for typed notes
• Voice notes
• Fast and effective cleaning of the camera rod

Data management
• Simply record and store photos and videos on the 32 GB SD card for documentation and archiving purposes for you and your customers
• Wireless LAN interface

Location detection with Wöhler L 200 Locator (optional)
• Transmitter integrated with camera head makes it possible to precisely locate the camera head
• Pinpoint damage repairs to pipelines
• Telescopic holder makes it easy to locate damage under floors or in ceilings
• Chalk holder with lithographic chalk to mark located damage immediately
• Long-lasting rechargeable Li-ion battery
